Building Rome from a Single Image

Single-image 3D scene reconstruction

Building Rome from a Single Image

Jiraphon Yenphraphai1,2 Fang Li1,3 Tianshuo Xu1 Depu Meng1 Quentin Herau1 Yihan Hu1 Raymond A. Yeh2 Wei Zhan1,4

1Applied Intuition 2Purdue University 3UIUC 4UC Berkeley

Paper Code (soon)

Interactive

Explore the reconstructions

Drag to orbit, scroll to zoom, WASD to move, QE down/up. Measure: pick two points to get their distance in metres.

Note: meshes are simplified to about 1.5M faces for this web viewer; the paper figures and videos use the full-resolution meshes.

Overview

An object generator, redesigned for whole scenes

  • Adaptive scene chunks. Chunks grow with distance: small ones keep nearby detail, large ones cover distant buildings.
  • Explicit 2D–3D conditioning. Image features are lifted onto the observed surface, and each voxel knows if it is free, visible, or hidden.
  • Autoregressive generation. Neighbouring chunks reuse overlapping latents, so new geometry stays consistent with the scene.

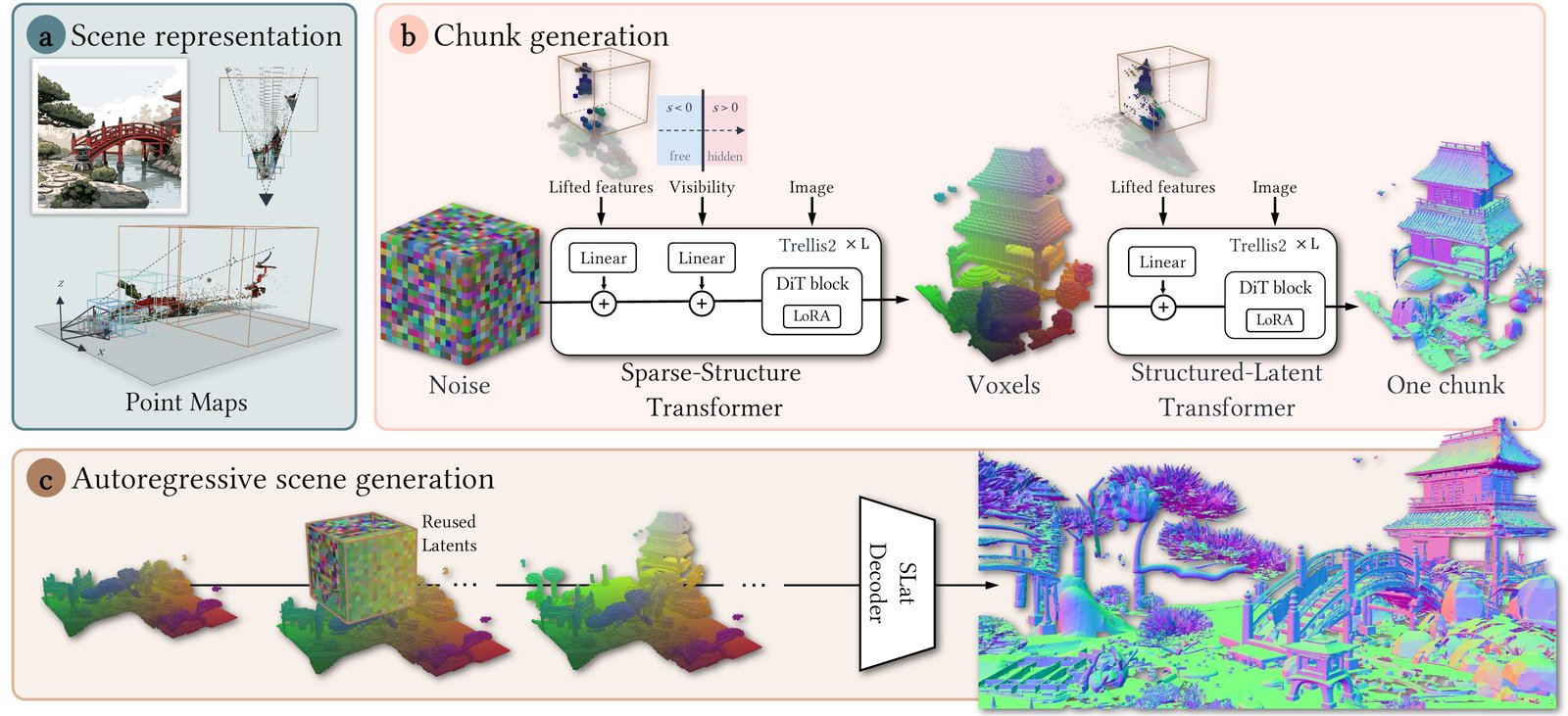

Pipeline: (a) the image is lifted with a point map and split into adaptive 3D chunks; (b) each chunk is generated by a sparse-structure transformer conditioned on lifted features and visibility, then a structured-latent transformer; (c) chunks are generated autoregressively with reused latents and decoded into one scene mesh.

Comparisons

Input photo, scene 1
Input
Ours
World Tracing
GenRecon
VolFill
Lyra 2.0
